2004 Aerial Imagery
Full Documentation
To learn the details of these images, including which images cover which areas, please refer to the Report of Collected Aerial Imagery.
Quick start
The names of the photo files listed below use the following convention:
Consider the example SL_Ortho-Mosaic_1067_081904_1200-10x.sid (MrSID format photo file):
- SL-------Site name (see below)
- Ortho----Rectification method (Photo was ortho-rectified, as opposed to geo-rectified)
- Mosaic---Consists of two or more individual photos, mosaiced together
- 1067-----WWR project number
- 081904---Date photo was taken (August 19, 2004)
- 1200-----Pixel resolution of photo image file
- 10x------Compression factor using MrSID software (compressed by a factor of 10)
The Site abbreviations are as follows:
- SELECTED SITES

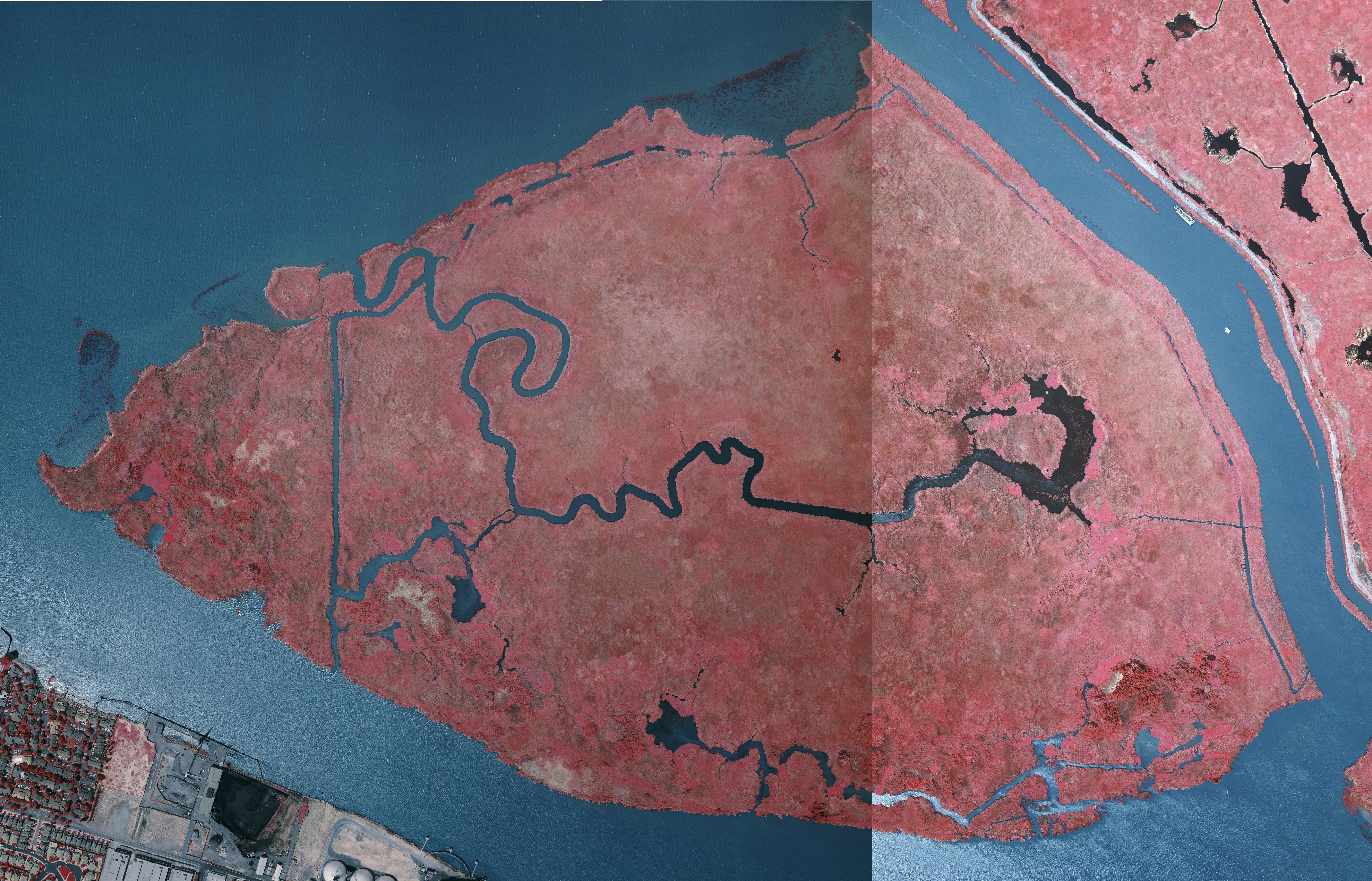

- BrI - Brown's Island

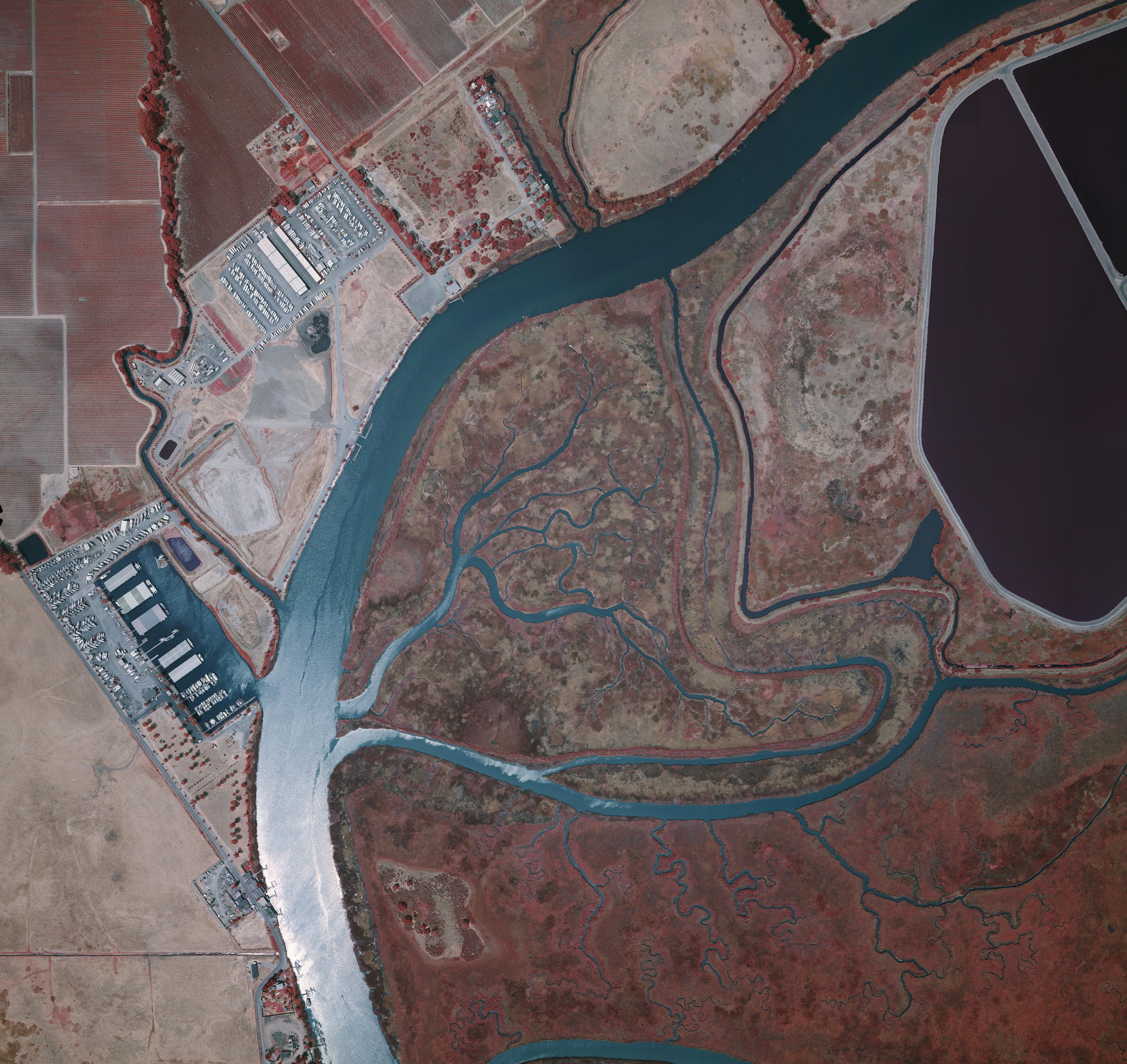

- BuI - Bull Island

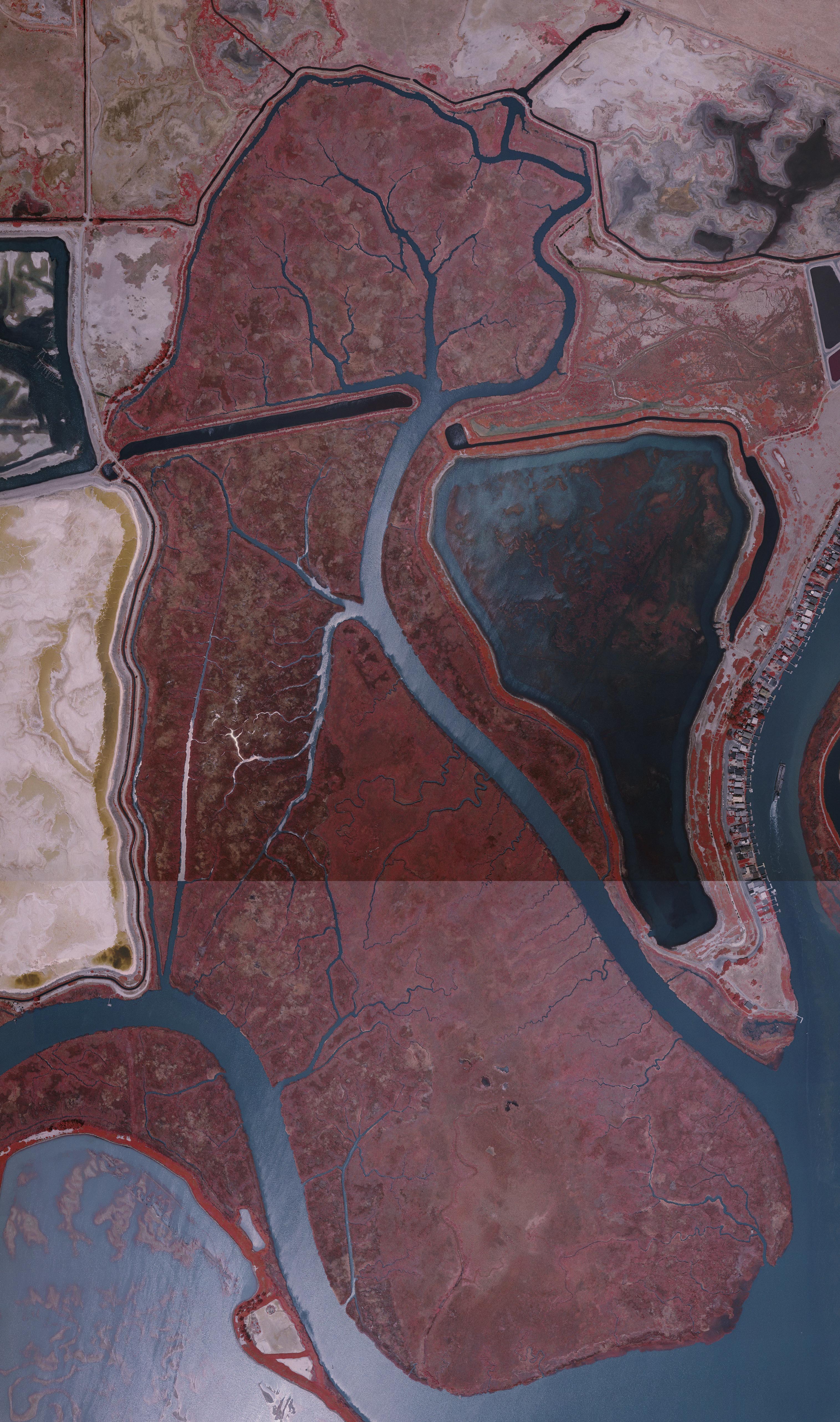

- CI - Coon Island

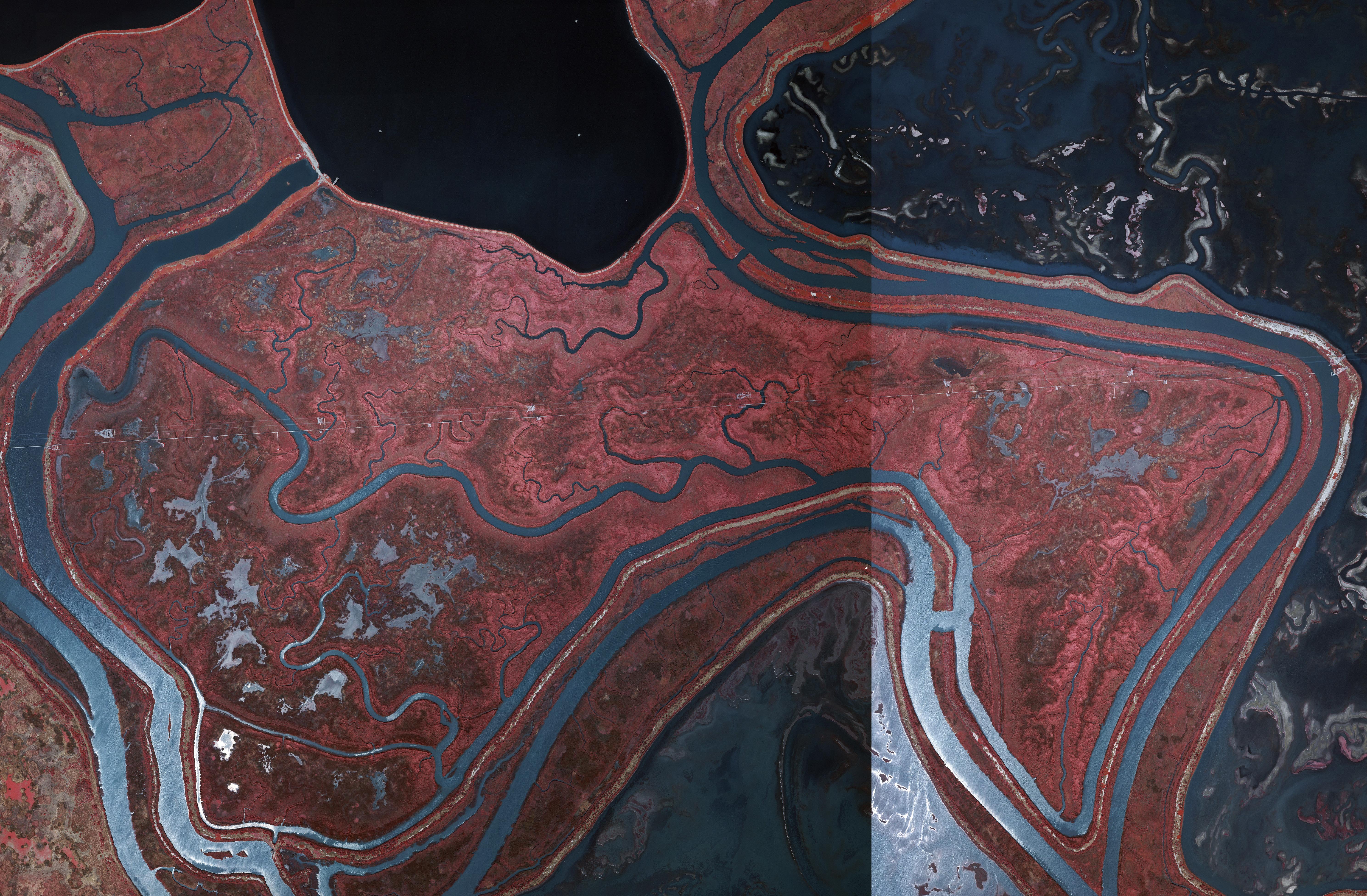

- P2A - Pond 2A

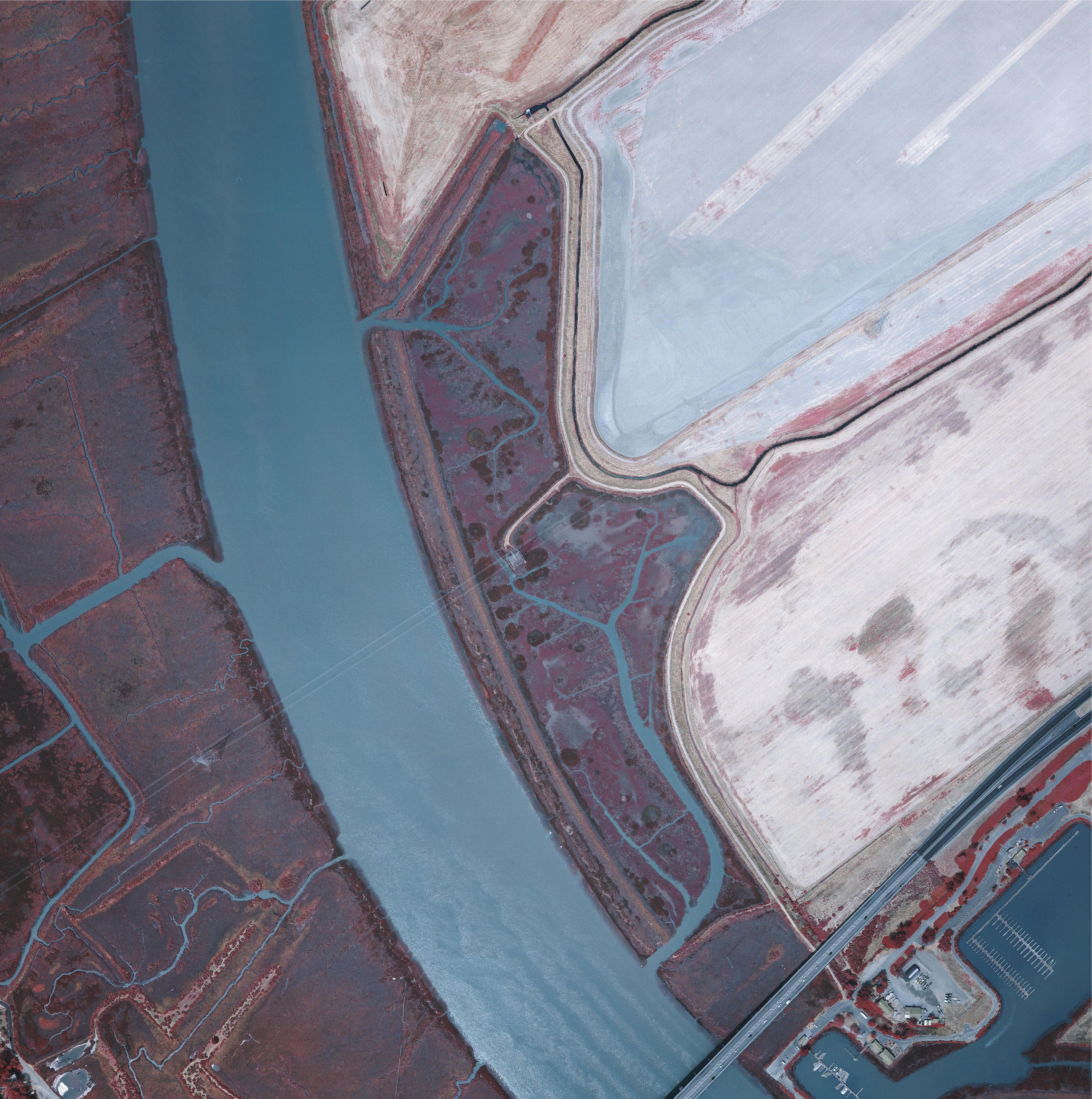

- CM - Carl's Marsh (Petaluma River Marsh)

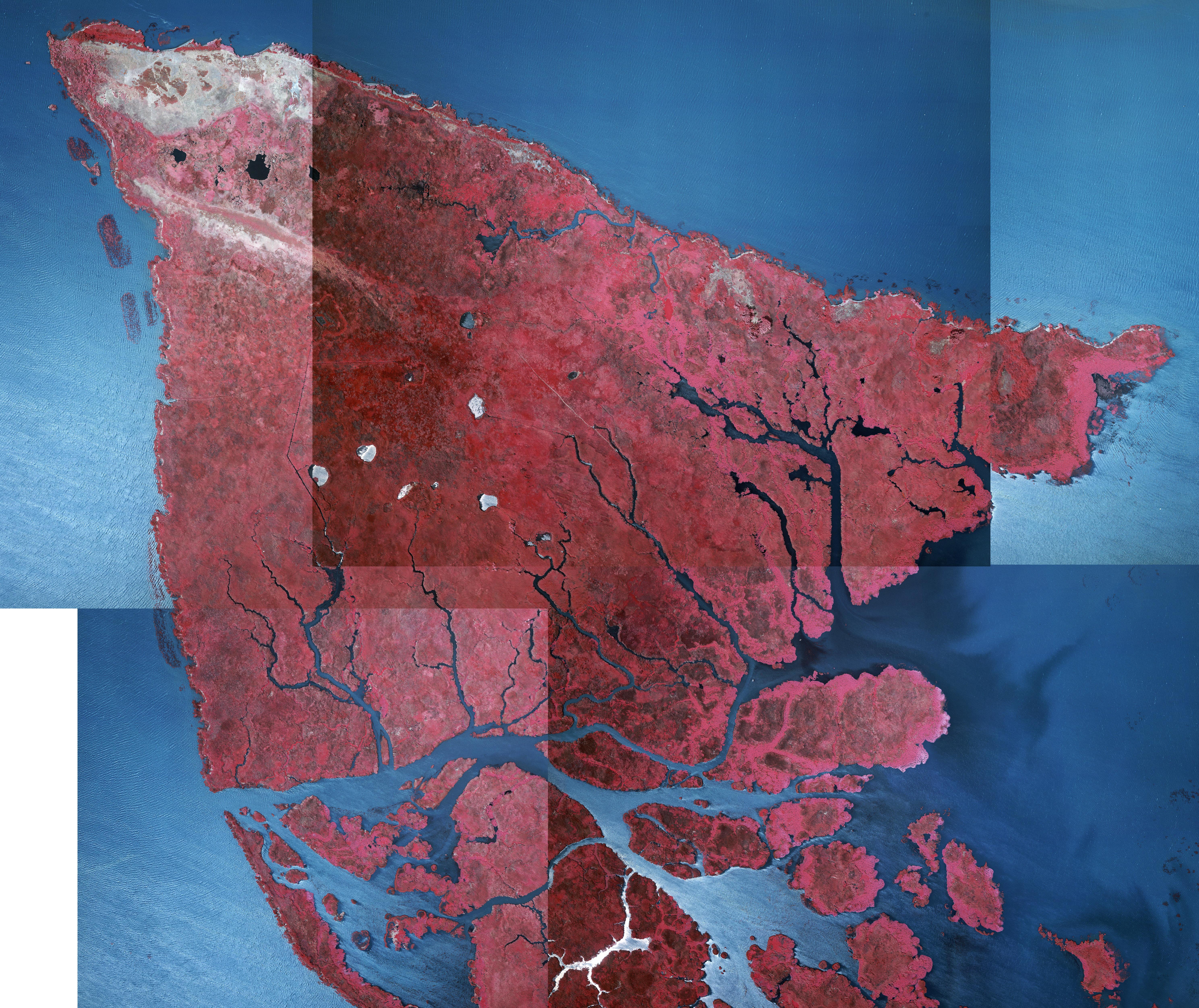

- SL - Sherman Lake
- Secondary

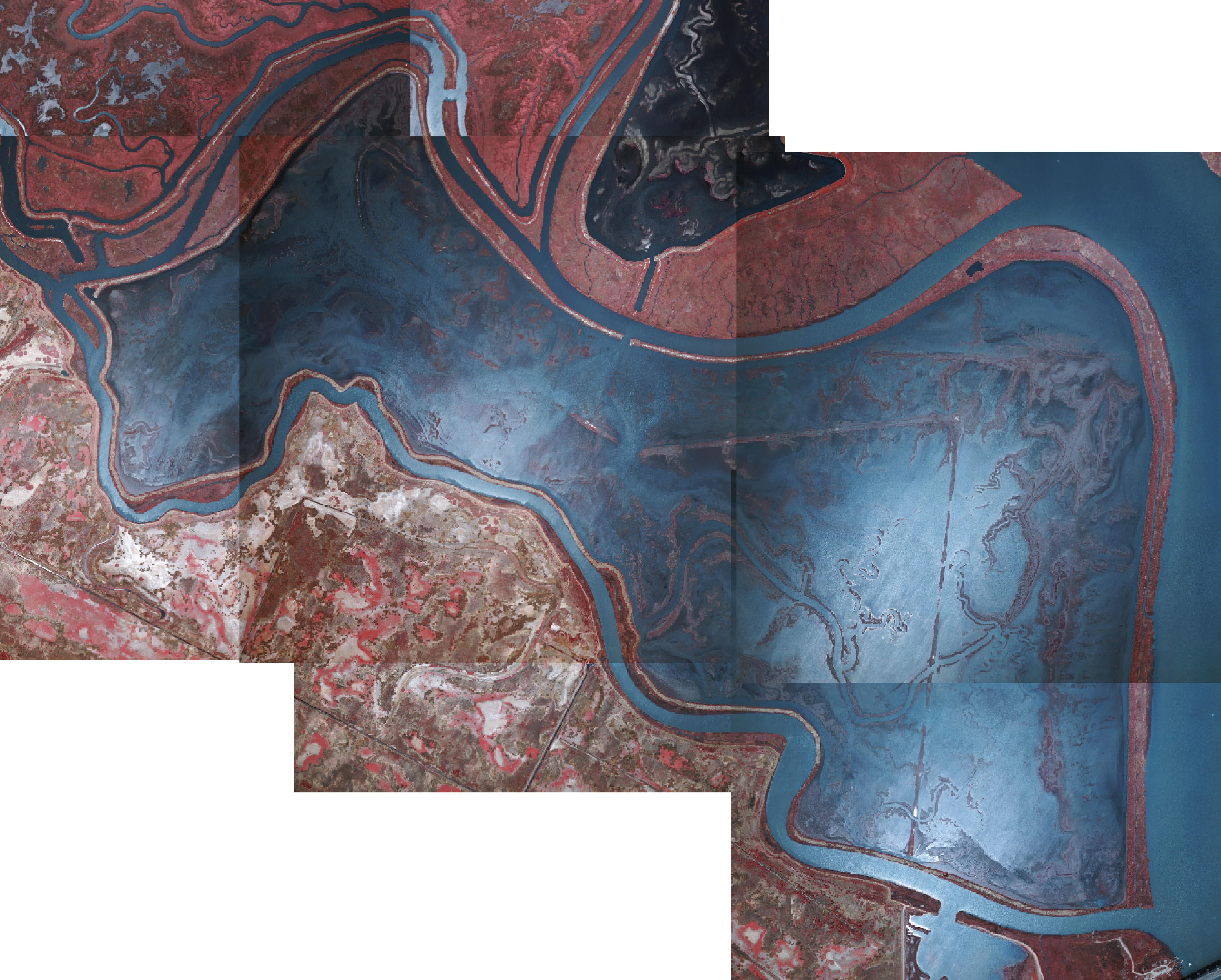

- P3 - Pond 3
Complete metadata is stored in each file's namesake HTML and XML files, but here are the basics:
- All of the selected site mosaics are in MrSID format (compressed from TIFF). MrSID files can be read in most GIS software, though an extension (included in all ESRI GIS products) may be required to view the photos.
- Clipped photos have been included to exclude non-data fiducial/flight information. Clippling occurred subsequent to ortho-rectification and prior to mosaicing.
- All aerial photos were taken on August 19th, 2004.
- 1:9,600 is the (geographic/fractional) scale for individual photos (and mosaics) for all sites. Pixel size for all ortho-rectified images is 0.2 meters (0.67ft).
- All image files conform to the following projection parameters:
-
- Projection: UTM
- Zone: 10N
- Datum: NAD83
- Units: Meters
Additional information regarding a photo's horizontal accuracy (rectification RMS) can be found in the folder titled "Rectification Parameters"). For additional information, contact Wetlands and Water Resources (WWR): (415) 457-0250 | www.swampthing.org
All photo images are public domain. Citation and credit information follows: All photos were produced by Hammon, Jensen & Wallen, Oakland, CA. All photo processing and documentation was carried out by Jake Schweitzer, WWR, October 2004.
Image files for download
Note: These files range in size up to 100 MB. If you have trouble downloading a file, try a right-click or click-&-hold on the file to reveal your browser‘s popup menu to “Save as...” or “Download...” the file.
Image Metadata
Ortho-rectified, Unclipped, Individual MrSID
Ortho-rectified, Clipped, Mosaic (if necessary) JPEGs
Ortho-rectified, Clipped, Individual MrSID
Ortho-rectified, Clipped, Mosaic (if necessary) MrSID
Rectification Parameters
Residing in the following files are the input parameter and output accuracy files for the ortho-rectification of each
individual photo, which were originally TIFF files. The files are text files produced by Research Systems ENVI 3.6.
- Those files with "fiducial-xy" in the name indicate internal orientation files, which register the fiducial mark locations
- Those files with "Reg-table" in the name indicate external orientation files, which register geographic coordinate locations
- Each file type, with respect to extension (txt vs. pts), includes separate relevant information from the above two types (e.g., only the pts file includes coordinate system information and only the txt files include RMS values)
- Those files with "Ortho-parameters" represent the concatenation of the internal and external orientation information, and are used in the final ortho-rectification process (unlike the two former file types)
